ADJUSTER-SLACK AUTO 1-1/2"-10 STR 5-1/2

Part Number: R801041

$Special Offers Available

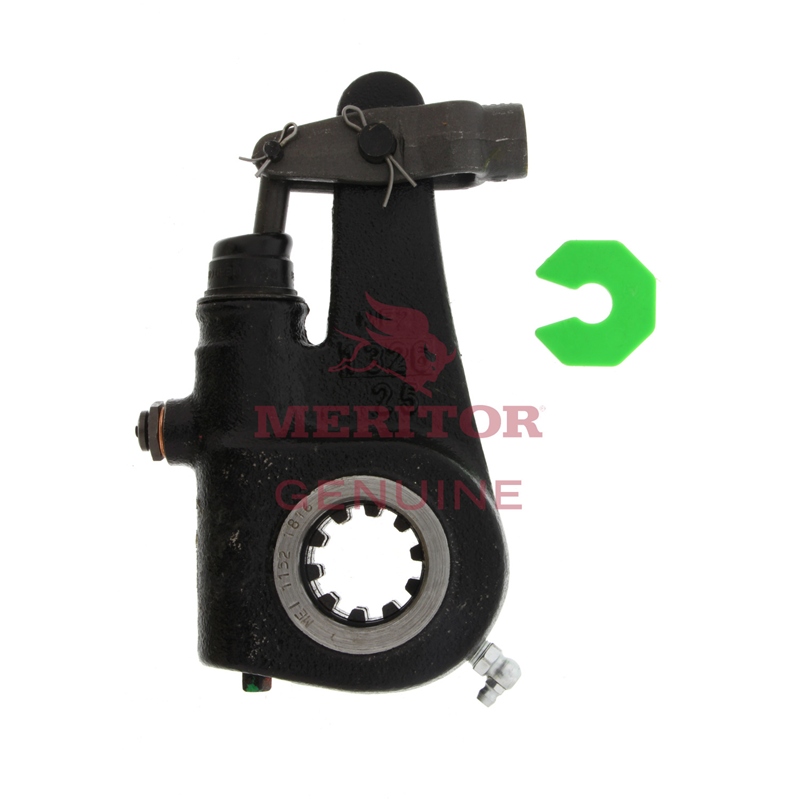

adjuster-slack auto 1-1/2"-10 str 5-1/2 image 1

Part Details

Description: ADJUSTER-SLACK AUTO 1-1/2"-10 STR 5-1/2
Brand: Meritor [MERTR]
Unit of Measure: Each
VMRS Code: 013-017-017 [Slack Adjuster - Automatic, Position Not Specified]
Clevis Kit Part No.: R810019
Clevis Thread: 5/8"-18
Clevis Type: Straight
Kit Type: 3
Lever Length: 5-1/2"
Spline: 1-1/2"-10
Unclevised Part No.: R803195

Resources
Special Offers
Alternative Parts

Resources

Manufacturer Website

Manufacturer Part Number: R801041

Meritor Automatic Slack Adjusters

The Meritor Genuine stroke sensing design keep brakes in constant alignment. Designed and manufactured with high strength gears and components for long life. Brake maintenance is reduced and vehicle inspections measuring chamber stroke are in compliance. The slack adjusters can be ordered with the R810019 clevis (5/8” X 18) or other size as needed. They may also be ordered without a clevis and a separate clevis kit to fit the specific application. The choice of handed or unhanded refers to the location of the adjustment pawl. Unhanded has the pawl in line with the chamber stroke. Handed has them located on the side of the slack adjuster. This allows selection based on accessibility of the pawl during maintenance.

Special Offers

Alternative Parts

Part Number	Description	Brand
K041870BXW	SLACK-ADJ,VERSAJUST,1.5-10C,5.5", 5/8-18	Bendix
MK41100S	SLACK ADJUSTER - BRAKE, POSITION NOT SPECIFIED	Hendrickson
MK21100S	SLACK ADJUSTER - BRAKE, POSITION NOT SPECIFIED	Hendrickson
CS56032M1D	ADJUSTER - AUTO SLACK	Haldex
