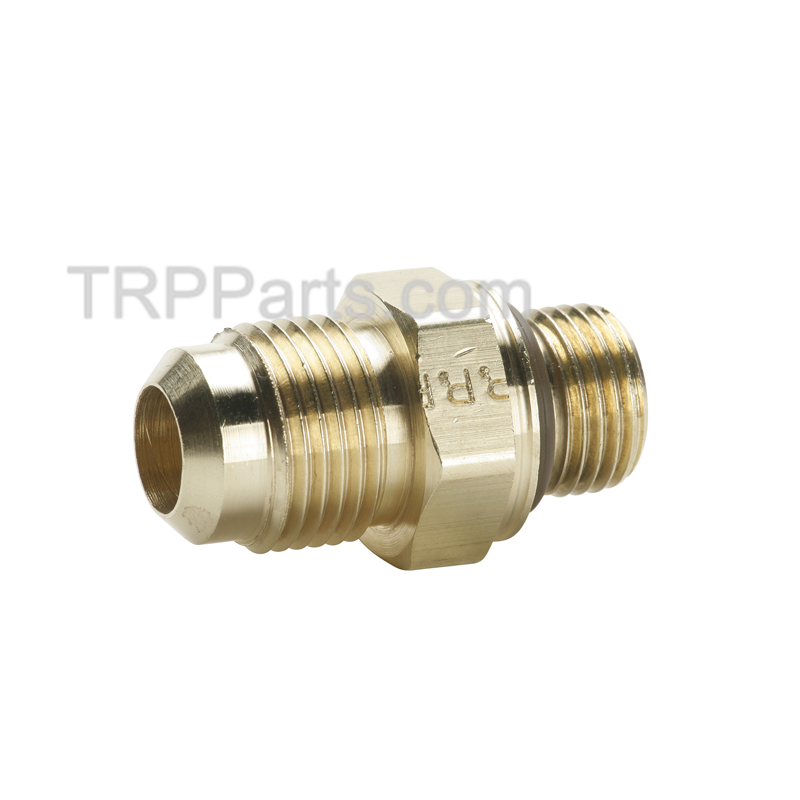

FITTING

Part Details

• Description: FITTING
• Brand: TRP [TRPPC]
• Unit of Measure: Each
• VMRS Code: 053-008-004 [Fittings]
• Body Material: Brass
• Connection 1 Style: Flare
• Connection 1 Tube O.D. (Inch): 0.625
• Connection 2 Style: Metric Thread
• Connection 2 Thread Size (mm): M27X2.0
• Industry Standards: SAE J512, SAE J513
• Maximum Working Pressure (BAR): 193
• Maximum Working Pressure (PSI): 2800
• Maximum Working Temperature (C): 121
• Maximum Working Temperature (F): 250
• Media: Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
• Minimum Working Temperature (C): -53
• Minimum Working Temperature (F): -65
• Nut Material: Brass
• O-ring Material: Fluorocarbon
• Shape: Male Connector
• Style: Flare to Metric Thread
• Tubing Material: Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
