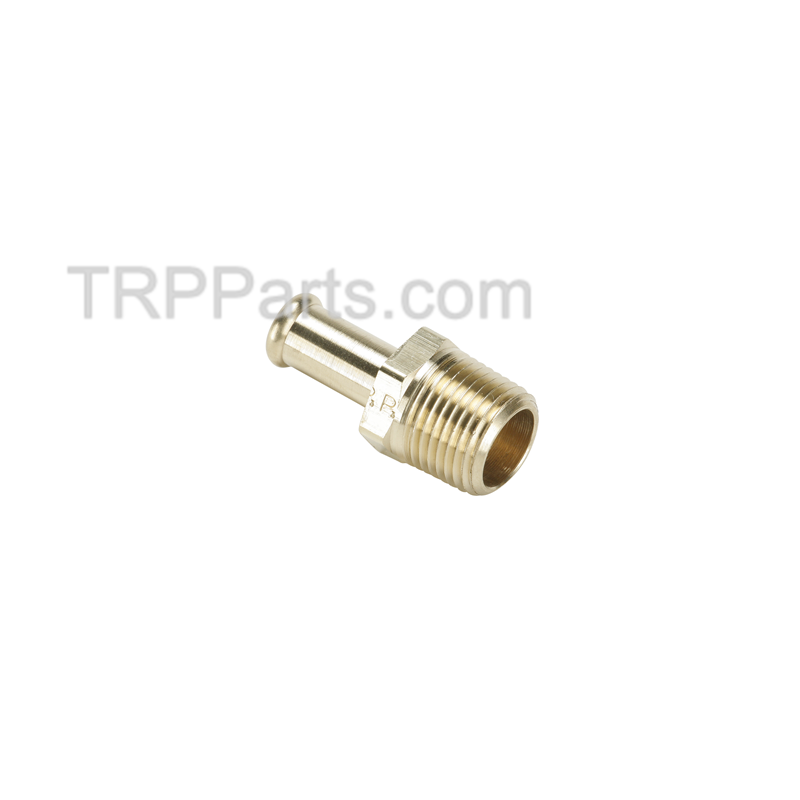

MALE PIPE BEADED FITTING

Part Number: FG21461

$Special Offers Available

The image(s) displayed are for illustrative purposes only. The actual product may differ from the image(s) shown.

Part Details

Description: FITTING-BEADED BRS MSTR #
Brand: TRP [TRPPC]
Unit of Measure: Each
VMRS Code: 053-007-116 [Coupler]
Body Material: Brass
Connection 1 Hose I.D. (Inch): 0.75
Connection 1 Style: Beaded Barb
Connection 2 Style: Male Pipe
Connection 2 Thread Size (Inch): 0.5
Industry Standards: Clamp or Crimped Ferrule must be used with fittings
Maximum Working Pressure (BAR): 10
Maximum Working Pressure (PSI): 150
Maximum Working Temperature (C): 71
Maximum Working Temperature (F): 160
Media: Water, Coolant, Compressed Air
Minimum Working Temperature (C): -40
Minimum Working Temperature (F): -40
Shape: Connector
Style: Barb to Pipe
Tubing Material: Rubber Hose, GPH Hose
