2DISC - 10 SPRING - 1650 TORQUE- 4 SUPER BUTTON

Part Number: CL107247-2

$Special Offers Available

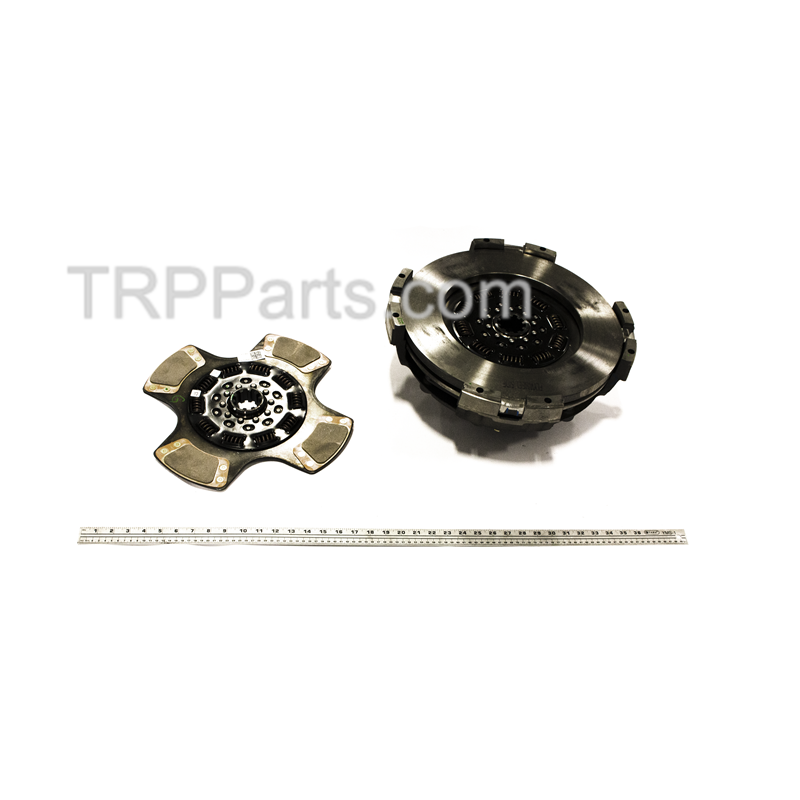

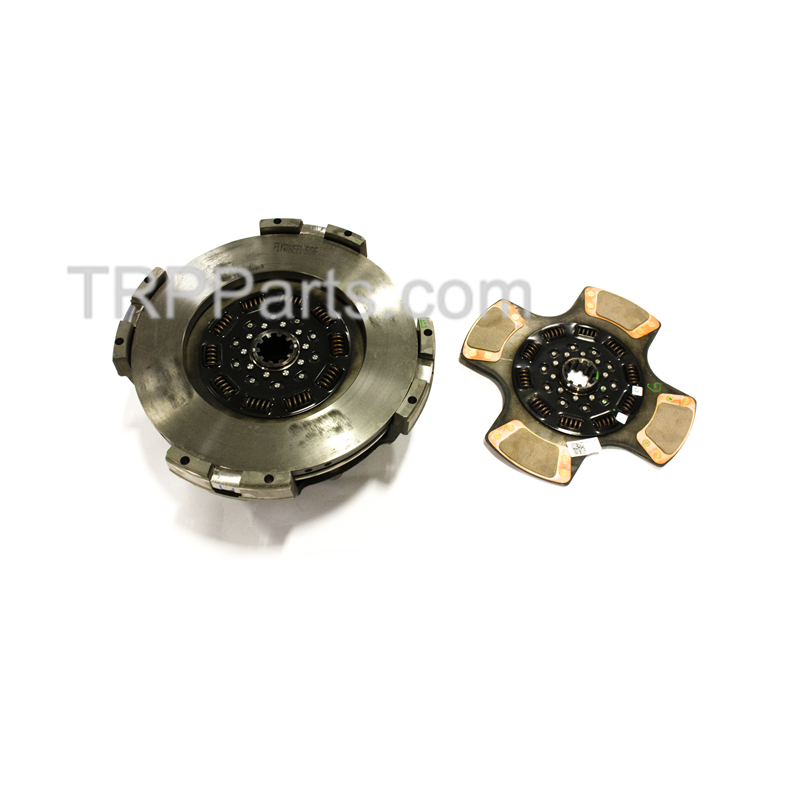

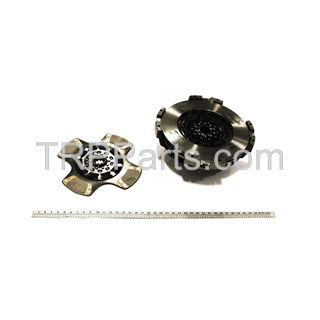

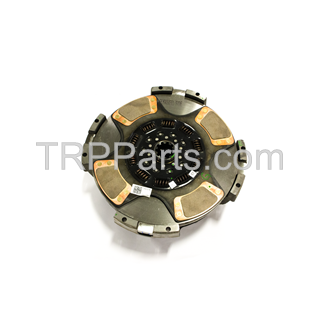

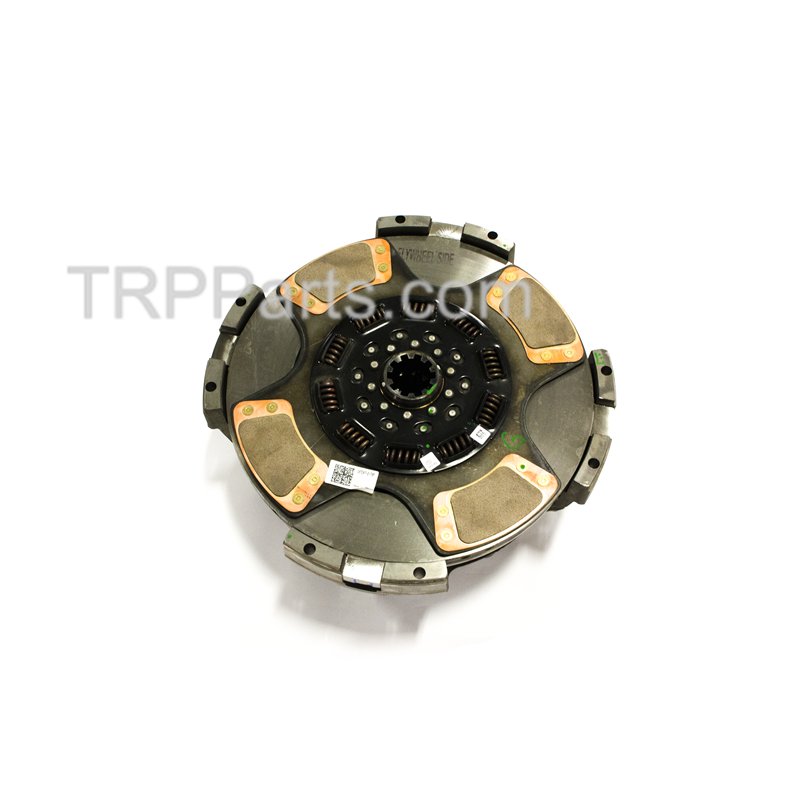

2disc - 10 spring - 1650 torque- 4 super button image 1

2disc - 10 spring - 1650 torque- 4 super button image 2

2disc - 10 spring - 1650 torque- 4 super button image 3

Play Video Print

Part Details

Description: 2DISC, 10SPRING, 1650TQ, 4 SUPER BUTTON
Brand: TRP [TRPPC]
Unit of Measure: Each
VMRS Code: 023-002-001 [Clutch Assembly - Vehicle Drivetrain]
Adjustment Type: Lock Strap
Bearing Type: Greaseable Dual Zerk
Ceramic Configuration: SB
Disc Style: 4-Paddle
Flywheel Opening: 8.5"
Free Travel: •
Friction Material: Ceramic
OEM No./ Size: 107091-74/ 15.5"
Plate Load (lbs.): 3600
Springs: 10
Torque Rating (ft/lb): 1650

Features and Benefits
Resources
Special Offers
Alternative Parts

Features and Benefits

Pedal Assist Reduces Foot Pedal Effort by 30%
New, not Remanufactured
24 Month Warranty

Resources

TRP Clutches

Special Offers

See Part Available Special Offers with a TRP^® Performance Membership

Benefits of a TRP^® Performance Membership:

Use your membership to redeem three offers on three separate days during the quarterly promotion period, and you'll be rewarded with an exclusive savings offer.
Each quarter, the Reward period resets and there'll be a new Reward to earn.
Your Reward is redeemable for 90 days. There is a limit of one Reward per registered customer, per quarterly promotion period.

Alternative Parts

Part Number	Description	Brand

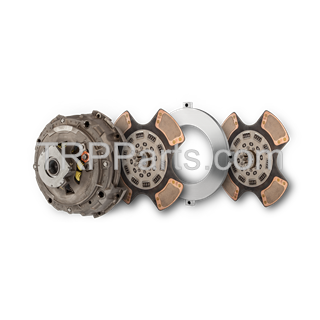

CL108291-74	2DISC - 10 SPRING - 1650 TORQUE- 4 SUPER BUTTON	TRP
308925-82	CLUT EP 15.5,1700 TORQ,DAMPR, 7-SPRNG	Eaton
108391-74AM	CLUTCH-15.5" 1650 TQ 10 SP EVRTGH 8.5"FW	Eaton
108925-82AM	CLUTCH-15.5" 1700 TQ 7 SP EVRTGH 10" FW	Eaton
N10839174	CLUTCH-NEW PACK EZ N LITE 15X2 TWIN 10S	Haldex
