TAPERED ROLLER BEARING SET - HM218248/HM218210
Part Number: BWSET414

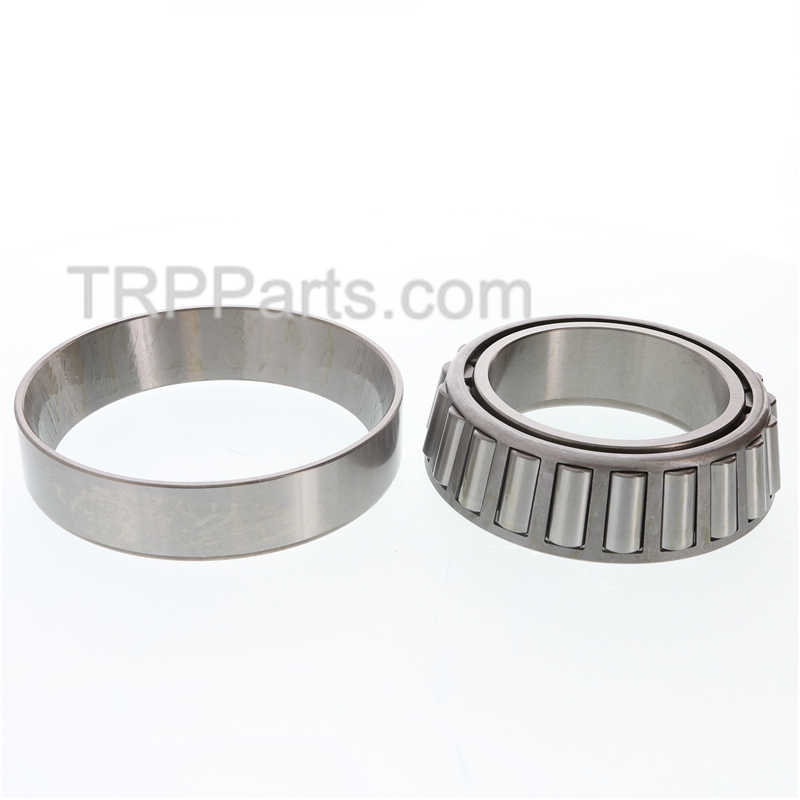

The image(s) displayed are for illustrative purposes only. The actual product may differ from the image(s) shown.
Part Details
- Description: SET-BEARING HM218248/HM218210
- Brand: TRP [TRPPC]
- Unit of Measure: Each
- VMRS Code: 018-005-003 [Kit - Bearing, Cup and Cone, Position Not Specified]

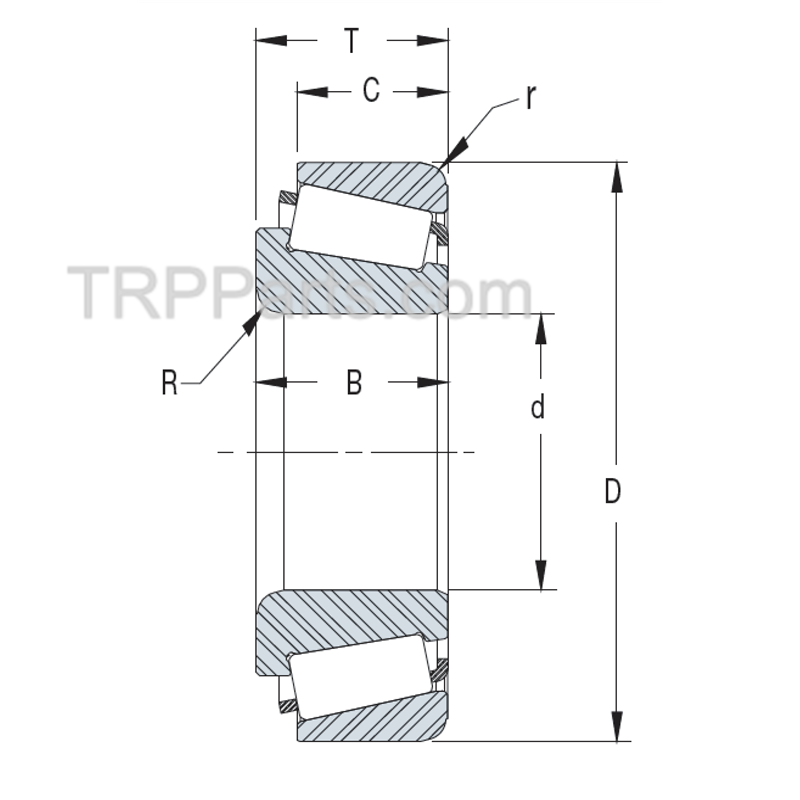

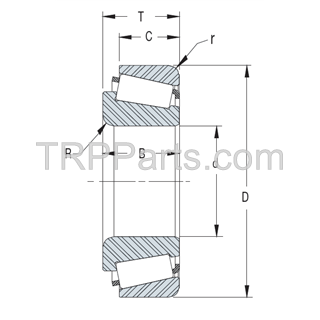

- Cone Marked As: HM218248
- Cone Weight: 3.91lbs (1.78kg)
- Cone Width (B): 1.5748" (40mm)
- Cone, Bore Diameter (d): 3.5423" (89.975mm)
- Cup Marked As: HM218210
- Cup Outside Diameter (D): 5.7864" (146.975mm)
- Cup Weight: 1.75lbs (0.8kg)
- Cup Width (C): 1.2795" (32.5mm)
- Housing Max Fillet Radius (r): 0.14" (3.5mm)
- Shaft Max Fillet Radius (R): 0.28" (7mm)
- Total Bearing Width (T): 1.5748" (40mm)
- TRP Cone Part Number: BWHM218248
- TRP Cup Part Number: BWHM218210
The image(s) displayed are for illustrative purposes only. The actual product may differ from the image(s) shown.
TAPERED ROLLER BEARING SET - HM218248/HM218210 - BWSET414
Features and Benefits
- Crowned Raceways and Rollers Allow for Optimum Roller to Raceway Contact for Increased Load Capacity
- Superior Raceway and Roller Finishes Yield Lower Running Torque and Operating Temperatures Resulting in Longer Life
- Vacuum Degassed 52100 Bearing Steel Ensures Durability
Resources
TRP also offers Bearing SETS, designed and manufactured, for hubs that utilize premium bearing stand technology. These bearing components are held to a very specific tolerance that allows for quickly setting the proper end play required to maximize bearing life when using the proper components.
