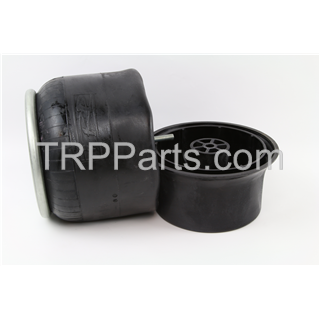

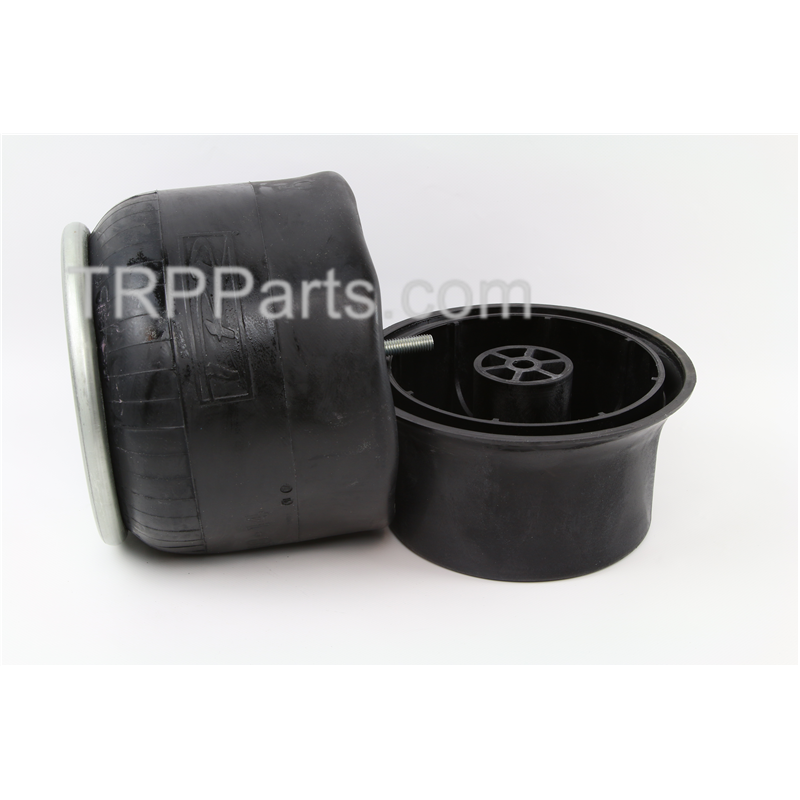

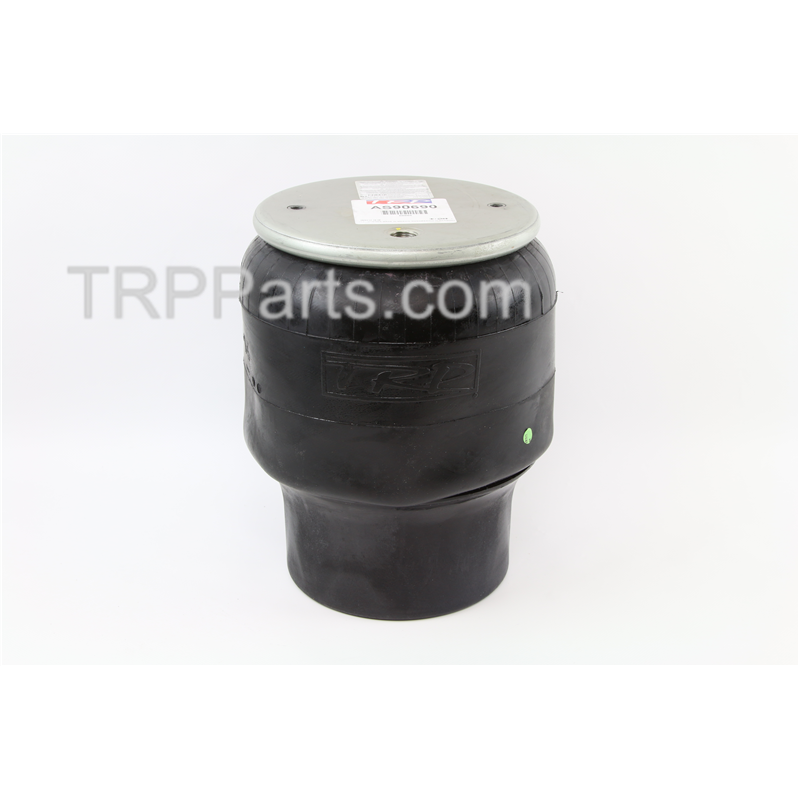

AIR SPRING - PETERBILT
Part Number: AS90690
The image(s) displayed are for illustrative purposes only. The actual product may differ from the image(s) shown.
Part Details
- Description: SPRING-AIR PETERBILT
- Brand: TRP [TRPPC]
- Unit of Measure: Each
- VMRS Code: 016-008-001 [Air Spring - Rear, Air Suspension]
- Bellows No.: 9 10-14
- Diameter (in): 12.6
- Load at 100 psi (lb): 7200
- Load at 80 psi (lb): 5700
- Max Height (in): 18.8
- Min Height (in): 7.5
- OEM Cross Reference: Peterbilt: 03-02456, 03-04759, 03-01649, 03-06746, 03-07112, 03-02038, 03-10042
- Piston Material: Composite
- Plate Diameter (in): 9
- Ride Height (in): 11
- Type: Rolling Lobe
- Weight (lb): 13.1978
The image(s) displayed are for illustrative purposes only. The actual product may differ from the image(s) shown.
AIR SPRING - PETERBILT - AS90690
Features and Benefits
- Chemically Formulated Vulcanized Material Withstands Ozone Effects
- Optimized wall thickness for better fatigue life
- Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
- 100% Leak Tested
Resources
Aftermarket Parts by TRP®. Please work with your sales representative T800 to confirm full part offerings and fitment for your vehicle.
Aftermarket Parts by TRP®. Please work with your sales representative 379 to confirm full part offerings and fitment for your vehicle.
Special Offers
See Part Available Special Offers with a TRP® Performance Membership
Benefits of a TRP® Performance Membership:
-
Use your membership to redeem three offers on three separate days during the quarterly promotion period, and you'll be rewarded with an exclusive savings offer.
-
Each quarter, the Reward period resets and there'll be a new Reward to earn.
-
Your Reward is redeemable for 90 days. There is a limit of one Reward per registered customer, per quarterly promotion period.
Alternative Parts
| Part Image | Part Number | Description | Brand |
|---|---|---|---|
|

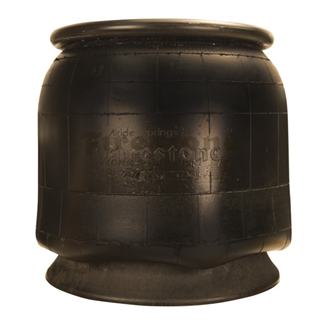

FS9069 | SPRING-AIR | Meritor |
National Warranty
When you purchase replacement parts at any authorized TRP Parts dealership in North America, you will find most TRP parts are covered by a minimum of a one-year/unlimited mileage warranty.
