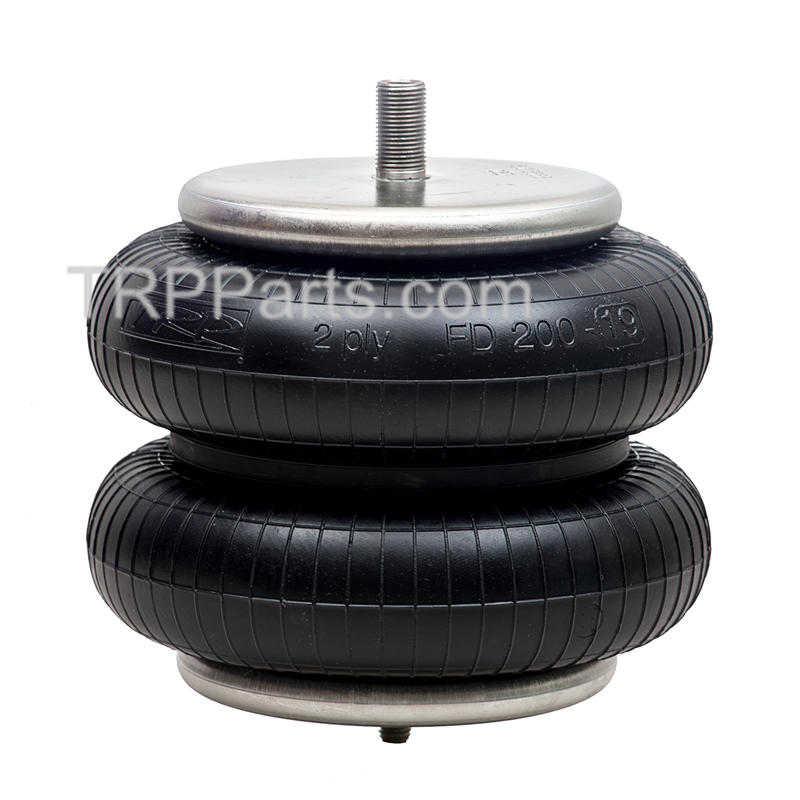

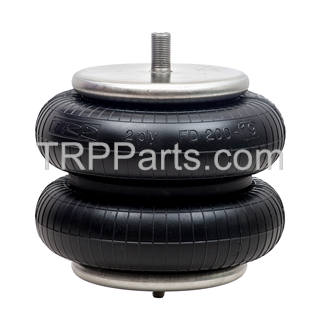

AIR SPRING - HSN AUXILIARY
Part Number: AS69350
The image(s) displayed are for illustrative purposes only. The actual product may differ from the image(s) shown.
Part Details
- Description: SPRING-AIR, HSN AUXILIARY
- Brand: TRP [TRPPC]
- Unit of Measure: Each
- VMRS Code: 016-014-008 [Air Spring - Liftable Air Suspension]

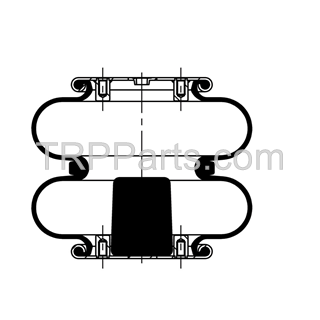

- Bellows No.: FD 200-19
- Diameter (in): 9.8
- Load at 100 psi (lb): 3200
- Load at 80 psi (lb): 2560
- Max Height (in): 10.5
- Min Height (in): 3.5
- Ride Height (in): 8
- Use With: Hendrickson Auxiliary; Hendrickson: HLM-1&2 (Lift)
- Weight (lb): 7.04
The image(s) displayed are for illustrative purposes only. The actual product may differ from the image(s) shown.
AIR SPRING - HSN AUXILIARY - AS69350
Features and Benefits
- Chemically Formulated Vulcanized Material Withstands Ozone Effects
- Optimized wall thickness for better fatigue life
- Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
- 100% Leak Tested
Special Offers
See Part Available Special Offers with a TRP® Performance Membership
Benefits of a TRP® Performance Membership:
-
Use your membership to redeem three offers on three separate days during the quarterly promotion period, and you'll be rewarded with an exclusive savings offer.
-
Each quarter, the Reward period resets and there'll be a new Reward to earn.
-
Your Reward is redeemable for 90 days. There is a limit of one Reward per registered customer, per quarterly promotion period.
Alternative Parts
| Part Image | Part Number | Description | Brand |
|---|---|---|---|
|
RB14318 | AIRSPRING-LIFT | Hendrickson |
|

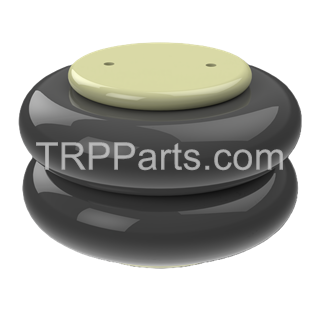

702932-01 | SPRING-AIR | Reyco |
|
|
AS0002 | AIR SPRING | Hendrickson |
|
CS209201M1D | SPRING-AIR | Haldex |
The selection and availability of parts shown on TRPParts.com may vary by location. Please contact your local retailer to check availability.
National Warranty
When you purchase replacement parts at any authorized TRP Parts dealership in North America, you will find most TRP parts are covered by a minimum of a one-year/unlimited mileage warranty.
