AIR SPRING - GRANNING - HSN
Part Number: AS69020

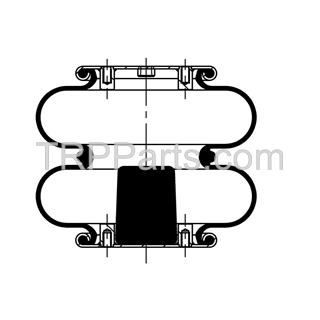

The image(s) displayed are for illustrative purposes only. The actual product may differ from the image(s) shown.
Part Details
- Description: SPRING-AIR, GRANNING, HSN
- Brand: TRP [TRPPC]
- Unit of Measure: Each
- VMRS Code: 016-008-001 [Air Spring - Rear, Air Suspension]
- Bellows No.: FD 200-19
- Diameter (in): 9.8
- Load at 100 psi (lb): 3200
- Load at 80 psi (lb): 2560
- Max Height (in): 10.5
- Min Height (in): 3.7
- OEM Cross Reference: Granning; Hendrickson; Hendrickson: MTL-45&50 (Lift), HLR Series ST-031 (Lift), HLR Series ST-004 (Lift), HLR Series RW14A-X (Lift)
- Plate Diameter (in): 6.3
- Ride Height (in): 8
- Type: Double Convoluted
- Weight (lb): 7.5636
The image(s) displayed are for illustrative purposes only. The actual product may differ from the image(s) shown.
AIR SPRING - GRANNING - HSN - AS69020
Features and Benefits
- Chemically Formulated Vulcanized Material Withstands Ozone Effects
- Optimized wall thickness for better fatigue life
- Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
- 100% Leak Tested
Resources
Special Offers
See Part Available Special Offers with a TRP® Performance Membership
Benefits of a TRP® Performance Membership:
-
Use your membership to redeem three offers on three separate days during the quarterly promotion period, and you'll be rewarded with an exclusive savings offer.
-
Each quarter, the Reward period resets and there'll be a new Reward to earn.
-
Your Reward is redeemable for 90 days. There is a limit of one Reward per registered customer, per quarterly promotion period.
Alternative Parts
| Part Image | Part Number | Description | Brand |
|---|---|---|---|
|
AS0002 | AIR SPRING | Hendrickson |
|
CS209201M1D | SPRING-AIR | Haldex |
|
W01-358-6902 | SPRING-AIR | Firestone |
National Warranty
When you purchase replacement parts at any authorized TRP Parts dealership in North America, you will find most TRP parts are covered by a minimum of a one-year/unlimited mileage warranty.
The selection and availability of parts shown on TRPParts.com may vary by location. Please contact your local retailer to check availability.
